FOR VISION SYSTEMS AND LIGHTS
Mounts to regular structural material from 80/20, BOSCH REXROTH™, MK and more (all of which have 8.2mm slots).
With the extra base (sold separately) it can be mounted to flat surfaces.

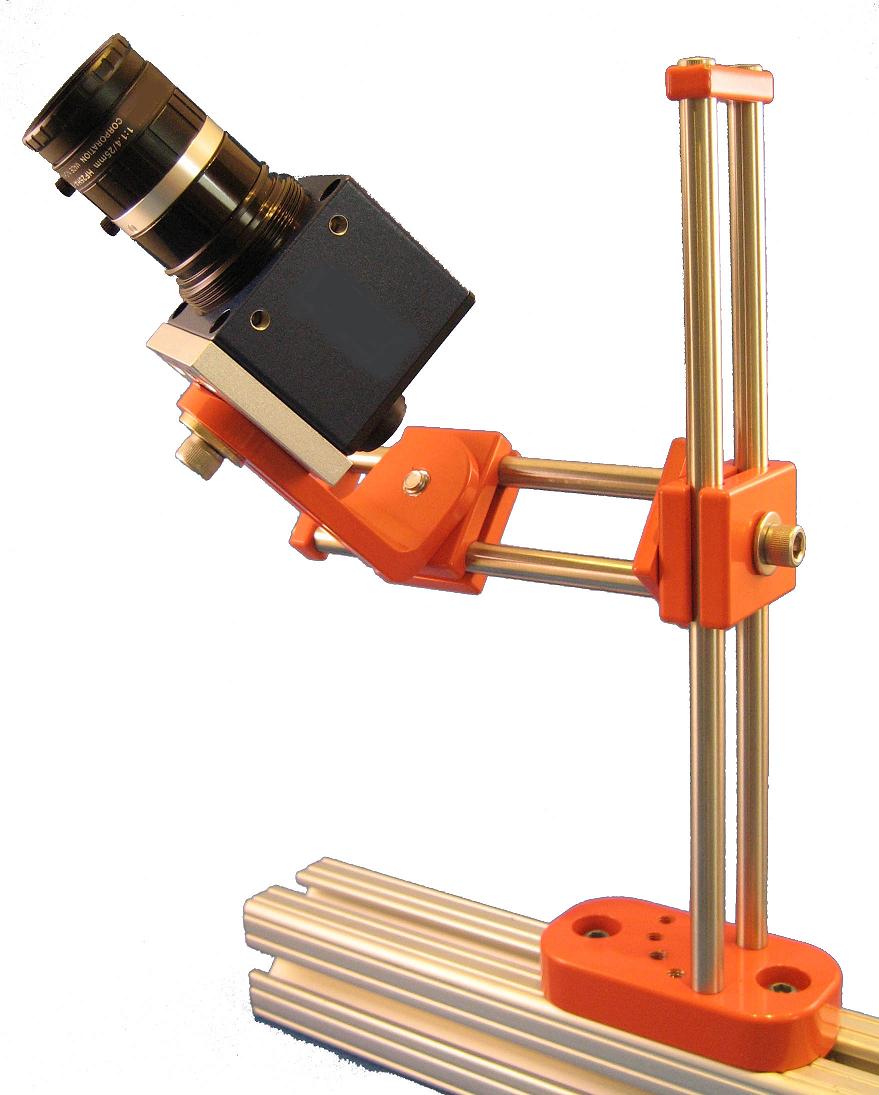

Vertical Adjustment: 168mm
Horizontal Adjustment: 68mm
Preangle: 0 ; 22.5 ; 45 ; 67.5 ; 90°
2 Turn Axix with 360° Adjustability
Maximum Payload: 0.6 kg
Overall Dimensions
Depth Maximum: 172mm
Width: 38mm Height: 292mm

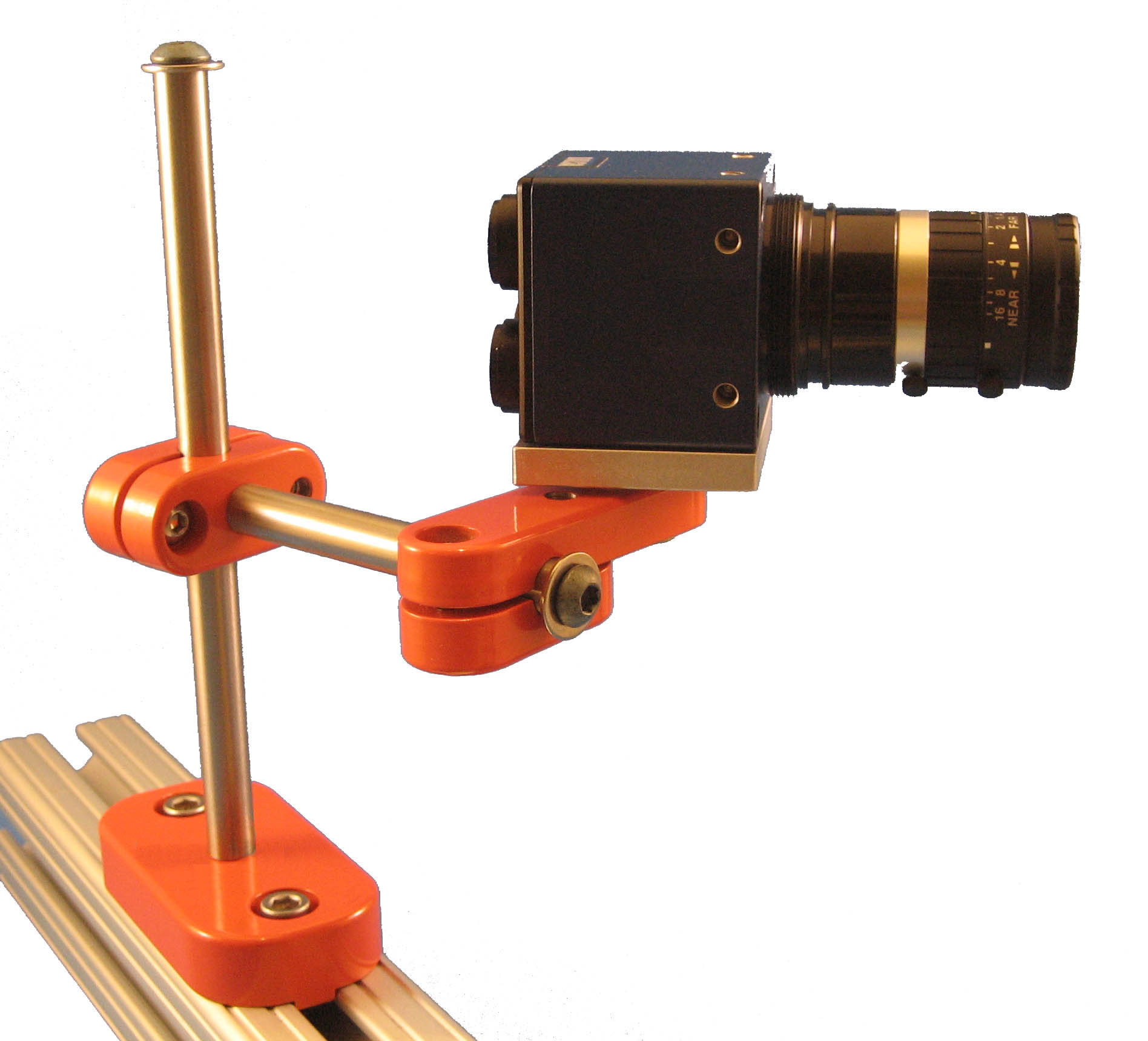

Vertical Adjustment: 130mm
Horizontal Adjustment: 55mm
2 Turn Axis with 360° Adjustability
Maximum Payload: 0.350 kg
Overall Dimensions
Depth Maximum: 126mm
Width: 110mm Height: 205mm
MATERIALS
HELICOIL® Inserts, Stainless Steel Screws
